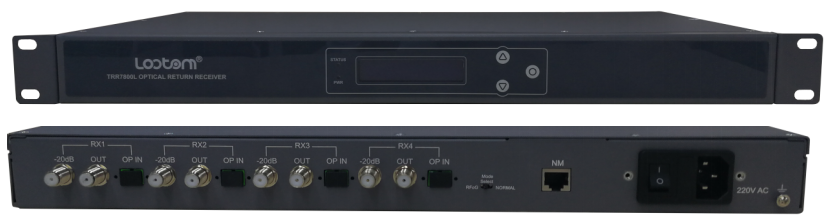

Super Low Power Return Path Optical Receiver TRR7800L

Overview    TRR7800L low power return path receiver is designed according to the standard of GY/T 194-2003 "optical node technology requirements and measurement methods". TRR7800L low power return path receiver is the preferred product in bi-directional optical transmission system networking.
   TRR7800L low power receiver contains 4 high performance optical detector to receive 4 optical signals and then convert into RF signal respectively, then RF amplify, to achieve four independent RF output. The output can be independently turned off. It has high isolation, excellent performance, flexible configuration, AGC control characteristics. Its built-in microprocessor monitors the key working state and parameters of the equipment in real time and remotely monitors and controls through network management. Features         ● The use of imported high-quality optical receiving devices for photoelectric conversion.
        ● Using high-performance dynamic noise isolation switch (DNIS switch optional).
        ● 5~200MHz RF bandwidth, to meet the requirements of different CATV system.
        ● Using high-quality low-power reverse amplification module to improve the reliability of the machine.
        ● RFoG and Normal working mode optional.
        ● high-quality switching power supply, to adapt to a wide range of voltage with high reliability.
        ● perfect safety protection circuit (over-voltage, lightning protection).
        ● perfect LCD display control and RS232 status monitoring port, can be easily controlled by computer. Technical Specifications

No.	Item	Unit	Performance	Remarks
Optical parameters
1	Optical wavelength	nm	1200～1600
2	Optical power input range	dBm	-25～0
3	Optical reflection loss	dB	＞45.0
4	AGC	dBm	－10～0
5	Input optical ports		2/4
RF parameters
1	RF band	MHz	5 ～200	Or 5～65 optional
2	RF output signal level	dBuv	≥84	The input optical power is -22dBm
3	flatness	dB	±0.75
4	Output reflection loss	dB	≥16
5	Output test point	dB	-20±1
6	RF output adjust range	dB	0～-20	Normal mode
		dB	0～-40	RFoG mode
7	Channel isolation	dB	5～65MHz＞60 65～200MHz＞40
8	NPR	dB	≥15(NPR≥30)
General parameters
1	Dimension	mm	440×210×44	W × H × L
2	Power Supply		AC50Hz220V30VA
3	Working temperature	℃	－5～＋55
4	Storage temperature	℃	－25～＋65
